70MHz–6.2GHz Full-Band UAV Detection System | Multi-Terminal Alarm Push with DJI Coverage & Autel Positioning for Anti-Drone Systems
| Menşe yeri | SHENZHEN |
|---|---|
| Marka adı | Ladasky |
| Model numarası | LDSK-TZ-600A |
| Min sipariş miktarı | 1 |
| Teslim süresi | 5-8 gün |
| Ödeme koşulları | L/C,D/A,T/T,D/P,Western Union, |
| Yetenek temini | 5000 adet/ay |
Ücretsiz numuneler ve kuponlar için bana ulaşın.
Naber:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xÜrün ayrıntıları
| Tam bant algılama | 70 MHz ila 6,2 GHz geniş spektrumlu tarama | FPV video yakalama | Tüm analog video aktarımlarını yakalayarak FPV izinsiz girişlerinin ve gerçek zamanlı dinamiklerin b |
|---|---|---|---|
| Gelişmiş Tespit Yeteneği | 12 km'ye kadar algılama ve şifre çözme aralığı | Çok Senaryolu Dağıtım | Sırt çantasına monteli, sabit sahalı ve araca monteli işlemleri destekler |
| Vurgulamak | 70MHz-6.2GHz UAV detection system,multi-terminal alarm drone detector,DJI Autel anti-drone system |
||
Ürün Açıklaması
70MHz–6.2GHz Full-Band UAV Detection System
Multi-Terminal Alarm Push with DJI Coverage & Autel Positioning for Anti-Drone Systems

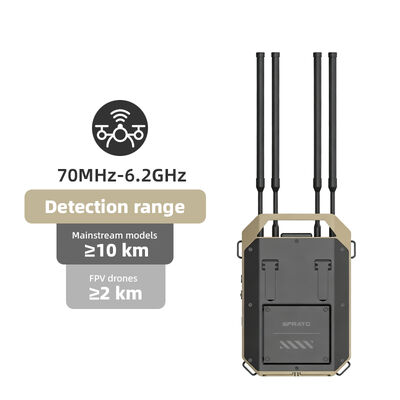

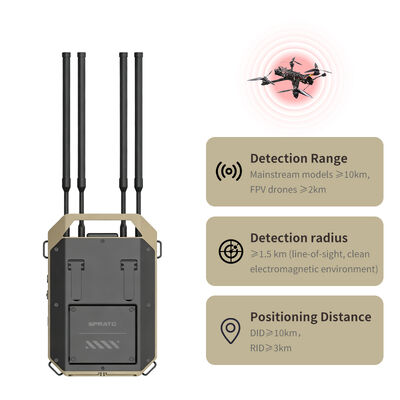

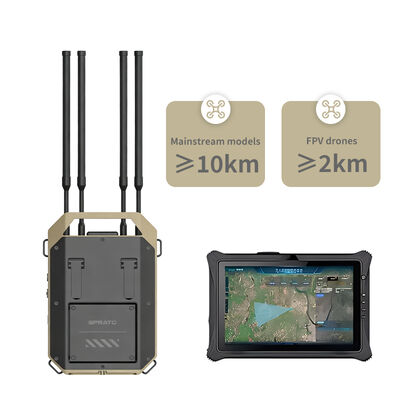

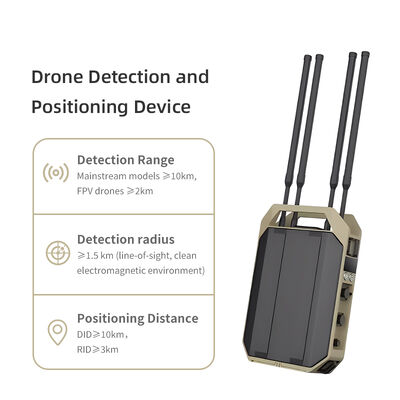

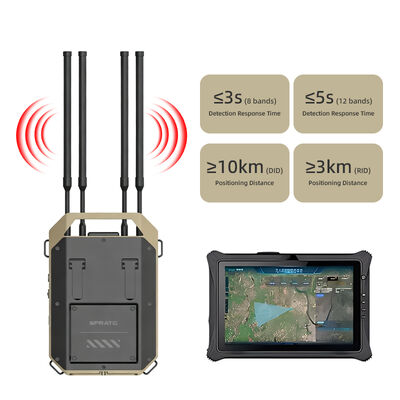

The LDSK-TZ-600A All-Scenario Drone Detection and Positioning System is a comprehensive, multi-functional solution designed for high-performance, long-range counter-drone operations. It integrates full-spectrum detection, precise drone and pilot positioning, and FPV video capture into a single, portable backpack or vehicle-mount system.
Key Features
- Identify, locate & track UAV threats up to 12km range
- Full-spectrum detection from 70MHz to 6.2GHz
- Precise drone and pilot positioning with ≤10m accuracy
- FPV video capture capability up to 1.5km
- Multi-terminal alarm sharing for coordinated team response
- Flexible deployment: backpack, fixed-site, or vehicle-mounted
- Rapid response time: ≤3 seconds for 8 bands
- Extended battery life: ≥6 hours operation
Product Specifications
| Model | LDSK-TZ-600A |
|---|---|
| Core Function | All-Scenario Detection, Positioning & FPV Video Capture |
| Detection Frequency Range | 70 MHz - 6.2 GHz (Customizable Scan) |
| Default Detection Bands | 400 MHz, 800 MHz, 900 MHz, 1.2 GHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz |
| Max Detection Range | ≥ 10 km (Mainstream UAVs) / ≥ 2 km (FPV Drones) |
| Positioning Capability | Drone & Pilot (Controller) Location |
| Positioning Range | DID: ≥ 10 km / RID: ≥ 3 km |
| Positioning Accuracy | ≤ 10 m |
| FPV Video Detection | 500 MHz - 6 GHz Analog Video Transmission |
| Video Capture Distance | ≥ 1.5 km (LoS, Clear Environment) |
| Response Time | ≤ 3 s (8 Bands) / ≤ 5 s (12 Bands) |
| Alarm Modes | Sound, Vibration, Light |
| Power Supply | Built-in Lithium Battery |
| Battery Life | ≥ 6 Hours (Main Unit) |
| Deployment Modes | Backpack, Fixed-Site, Vehicle-Mounted |
| Networking & Control | Multi-Terminal Alarm Push, RJ45 & Type-C Interfaces |
| Weight (Main Unit) | ≤ 8 kg |
| Dimensions (Main Unit) | 400 mm (L) × 165 mm (W) × 500 mm (H) |
| Package | Aviation Case Included (550mm×400mm×240mm) |
Product Images
