LLSKF09 Vehicle-mounted FPV UAV Jammer
| Menşe yeri | Guangdong, Çin |
|---|---|
| Marka adı | LDSK |
| Model numarası | LDSKC01 |
| Min sipariş miktarı | 1 |
| Fiyat | $1820 |
| Teslim süresi | 7-10 iş günü |
| Ödeme koşulları | D/A, D/P, T/T, Western Union, MoneyGram, PayPal |
| Yetenek temini | Ayda 5000 pc |
Ücretsiz numuneler ve kuponlar için bana ulaşın.
Naber:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xÜrün ayrıntıları
| Algılama frekans bandı | 400–550 / 550–700 / 700–840 / 840–1000 / 1000–1300 / 2400–2500 / 5100–5300 / 5700–5900 MHz (destek/ö | Çıktı gücü | 400W |
|---|---|---|---|
| Anten kazancı | 3–8 dBi | Anten Çalışma Açısı | Çok yönlü 360° (dikey); 65° yatay |
| Sıkışma mesafesi | 300–2000 m (ortama ve hedefe bağlıdır) | Tespit Edilebilir Drone'lar | DJI, AUTEL, FIMI, PowerVision, YUNEEC vb. |
| Vurgulamak | IP65 Protection Portable Drone Detector,Real-time Tracking UAV Detection System,Portable Design Drone Tracking System |
||
Ürün Açıklaması

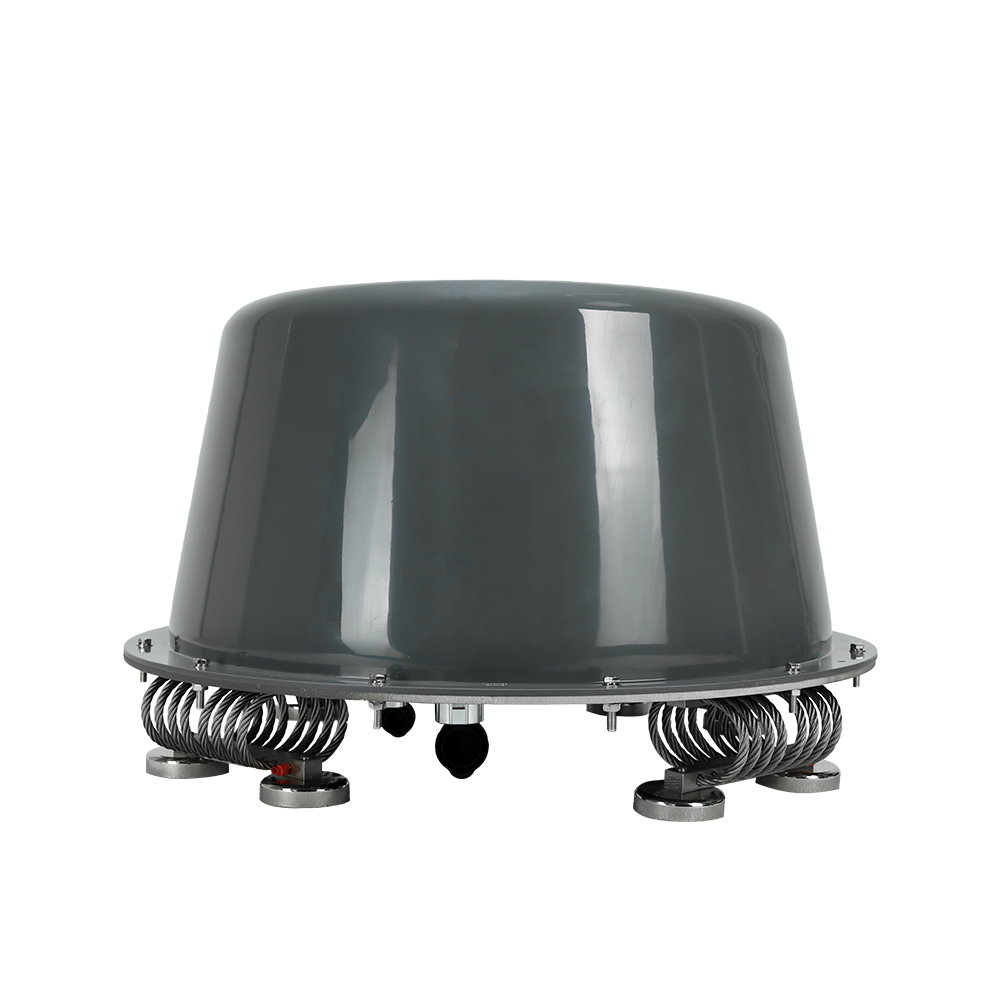

LLSKF09 Vehicle-mounted FPV UAV Jammer
Product Description
TTSKF09 is a high-power vehicle-mounted FPV UAV jammer that disables remote-control and video transmission links, forcing unauthorized drones to return or land. Rugged, roof-installable, and built for mobile protection.
Key Features
-

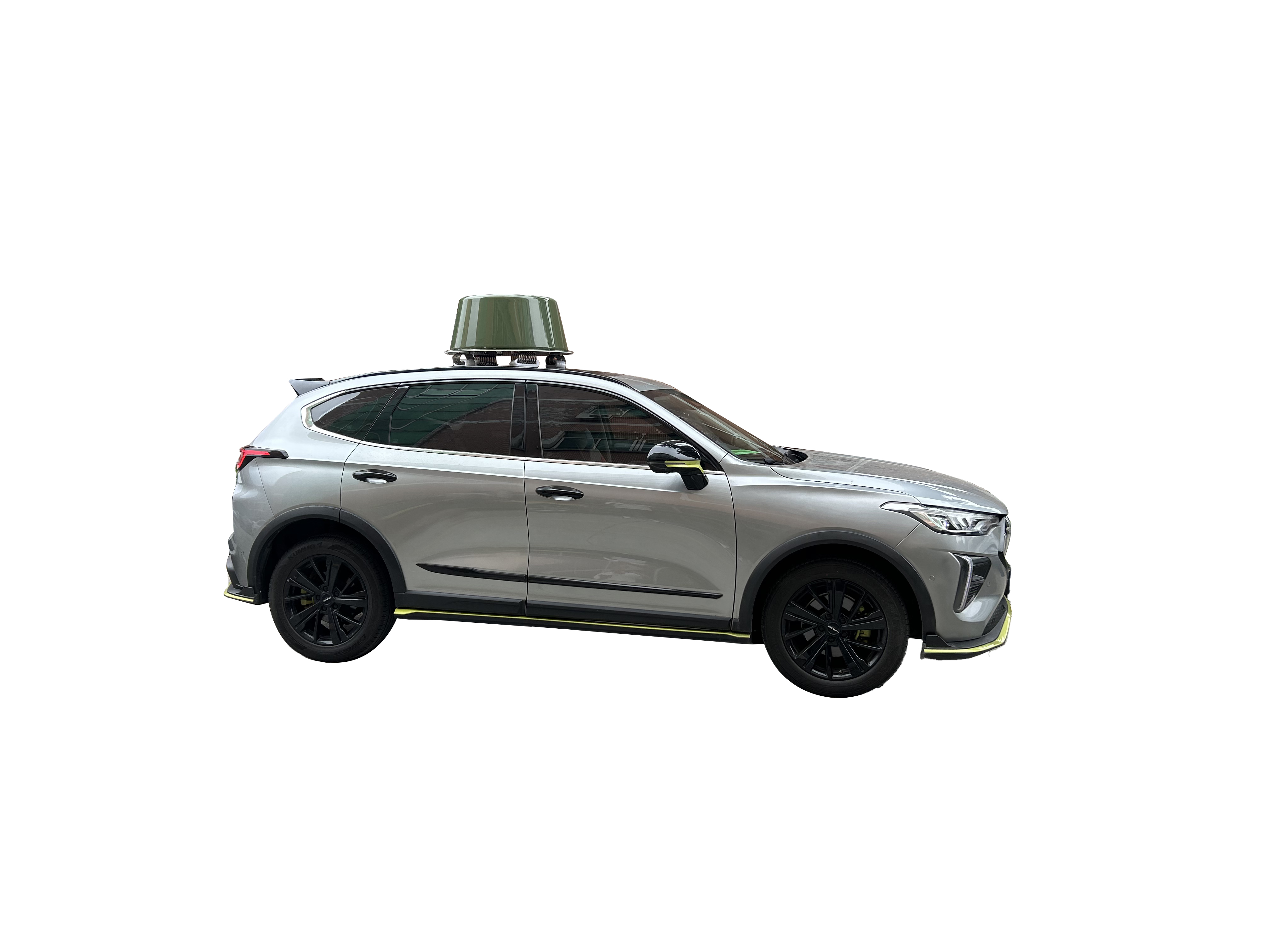

Purpose-built for vehicles — Roof-mount design protects moving cars, trucks, and convoys.
-
Multi-band coverage — Supports 400–1300 MHz, 2.4 GHz, 5.1–5.9 GHz and common FPV bands.
-
High total output power — 400W total output for robust jamming performance.
-
Wide jamming range — 300–2000 m (depends on target RC/FPV power, antenna height and environment).
-
Flexible power — Works from DC 24–29V with optional 40Ah external battery for off-grid use.
-
360° protection — Omnidirectional vertical coverage and wide horizontal coverage for continuous defense.
-
Simple control — Supplied remote control panel for easy operation while on the move.
-
Rugged and portable — Compact dimensions (Φ60cm × 35cm) and 20 kg curb weight.
Product Specifications
| Item | Specification |
|---|---|
| Model | LLSKF09 |
| Working Frequency | 400–550 / 550–700 / 700–840 / 840–1000 / 1000–1300 / 2400–2500 / 5100–5300 / 5700–5900 MHz (support/customized) |
| Output Power | 400 W (total) |
| Power Consumption | ≈ 900 W |
| Antenna Gain | 3–8 dBi |
| Antenna Working Angle | Omnidirectional 360° (vertical); 65° horizontal |
| Jamming Distance | 300–2000 m (depends on environment & target) |
| Power Supply | DC 24–29 V (external battery); battery charged by AC 220 V |
| External Battery (Optional) | 40 Ah (approx. 1 hour working time under typical load) |
| Control Method | Remote control panel |
| Dimension | Φ60 cm × 35 cm |
| Weight | 20 kg |
| Operating Temperature | -20 °C to +65 °C |
Product Images
Frequently Asked Questions
1. Why Choose us?
We have professional knowledge, sincere service, patient reply, and excellent team. Can give you a comfortable buying experience.
2. What is the process of placing an order?
First, you send products you like.
Second, we send information details and quotations.
Third, you can consult any questions about our products.
Fourth, confirm the order, we will send PI, payment link.
Fifth, after the goods are packaged, we will send pictures to confirm the products, and send you the express tracking number.
Sixth, after receiving the goods, you are welcome to give us product evaluations.
3. How to contact us?
emma@ladaskytech.com
