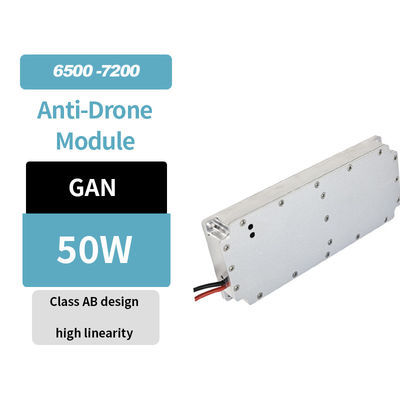

High-Power RF Amplifier Module 6500–7200MHz with Customizable Frequency, Wideband GaN Amplifier for Anti-FPV Drone Detection, Security, Surveillance, Signal Boost, and Counter-UAV Applications

Menşe yeri Shenzhen
Marka adı Ladaky
Min sipariş miktarı 1 adet
Fiyat $220
Teslim süresi 5-8gün
Ödeme koşulları L/C, D/A, D/P, Western Union, T/T, MoneyGram
Yetenek temini 50000pcs/ay

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
Frekans aralığı 6500–7200MHz, belirli operasyonel ihtiyaçlara göre özelleştirilebilir Ürün ağırlığı 400g
Geniş Uygulama FPV drone tespiti, drone karşıtı güvenlik ve RF araştırması için uygundur İstikrarlı Performans Çeşitli çevre koşullarında güvenilir sinyal iletimini korur
Kompakt Tasarım Modüler veya özel yapım drone karşıtı sistemlere kolay entegrasyon Dayanıklı yapı Yüksek güvenilirlik ve uzun hizmet ömrüyle sürekli çalışma için tasarlandı
Profesyonel derecede Askeri, endüstriyel ve profesyonel güvenlik uygulamaları için idealdir Gelişmiş Güvenlik Yetkisiz müdahaleyi önleyen gelişmiş anti-FPV drone önlemlerini destekler
Vurgulamak

6500–7200MHz GaN RF amplifier module

,

wideband GaN amplifier for anti-FPV drone

,

customizable frequency RF amplifier for surveillance

Mesaj panosundan ihtiyacınız olan ürünleri işaretleyip bizimle iletişime geçebilirsiniz.
Mesaj bırakın
Ürün Açıklaması

Product Description

6500-6700mhz/6700-6900mhz/6900-7200mhz 50W anti drone module/PA module

Power and Frequnecy support Customzation form 10-7500mhz, 10W,20W,30W, 40W, 50W,100W,150W,200W

The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.

RF Power Amplifier Rf Amplifier Board Rf Amplifier Module Anti-FPV Drone Security System Rf Power Amplifier Module 6500-7200M 6500-6700 6700-6900 6900-7200 6-7.5G rf amplifiers cb radio wideband rf power amplifier rf amplifiers 100w 220 mhz rf power amplifier 150w rf amplifier 1000w vhf 100-7500mhz factory

Performance Parameters

Parameter Min. Typ. Max. Unit Symbol
Operating Frequency 6500–6700, 6700–6900, 6900–7200 MHz
Bandwidth - 200 - MHz BW
Peak Output Power (CW signal) - 50 - W PSAT
Efficiency - 28 - % EFF
Harmonics (1st–Nth, @70W) 10 - - dBc HN
Spurious Emission 60 - - dBc Spur
Input VSWR - - 2:1 - VSWR
Output VSWR - - 2:1 - VSWR
Operating Voltage 28 - - V VDC
Current Consumption 5.5 - - IDC

Mechanical Parameters

Parameter Typ. Unit
Weight 0.4 kg

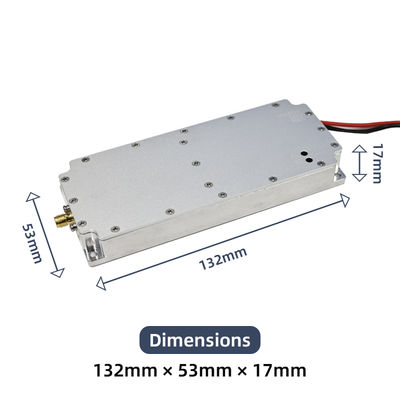

Dimensions 132 × 53 × 17 mm
RF Connector RF output: SMA female -
DC Connector Power supply: Feedthrough capacitor male -
Cooling Method External heat sink required -

High-Power RF Amplifier Module 6500–7200MHz with Customizable Frequency, Wideband GaN Amplifier for Anti-FPV Drone Detection, Security, Surveillance, Signal Boost, and Counter-UAV Applications 0

Frequently Asked Questions
Why Choose Us?

We offer professional expertise, sincere service, prompt responses, and an excellent team to ensure a comfortable purchasing experience.

What is the order process?
  1. Send us your product selection
  2. We provide detailed information and quotations
  3. Discuss any product questions
  4. Confirm order and receive payment instructions
  5. Receive package confirmation and tracking
  6. Provide feedback after receiving goods
How to contact us?

Email: jess@ladaskytech.com
